DOT application on Tug

Typical application of DOT 30 system on oval shaped lower accommodation level:

• Safe access on deck level within bullwark
• Sound usage of accommodation with daylight.

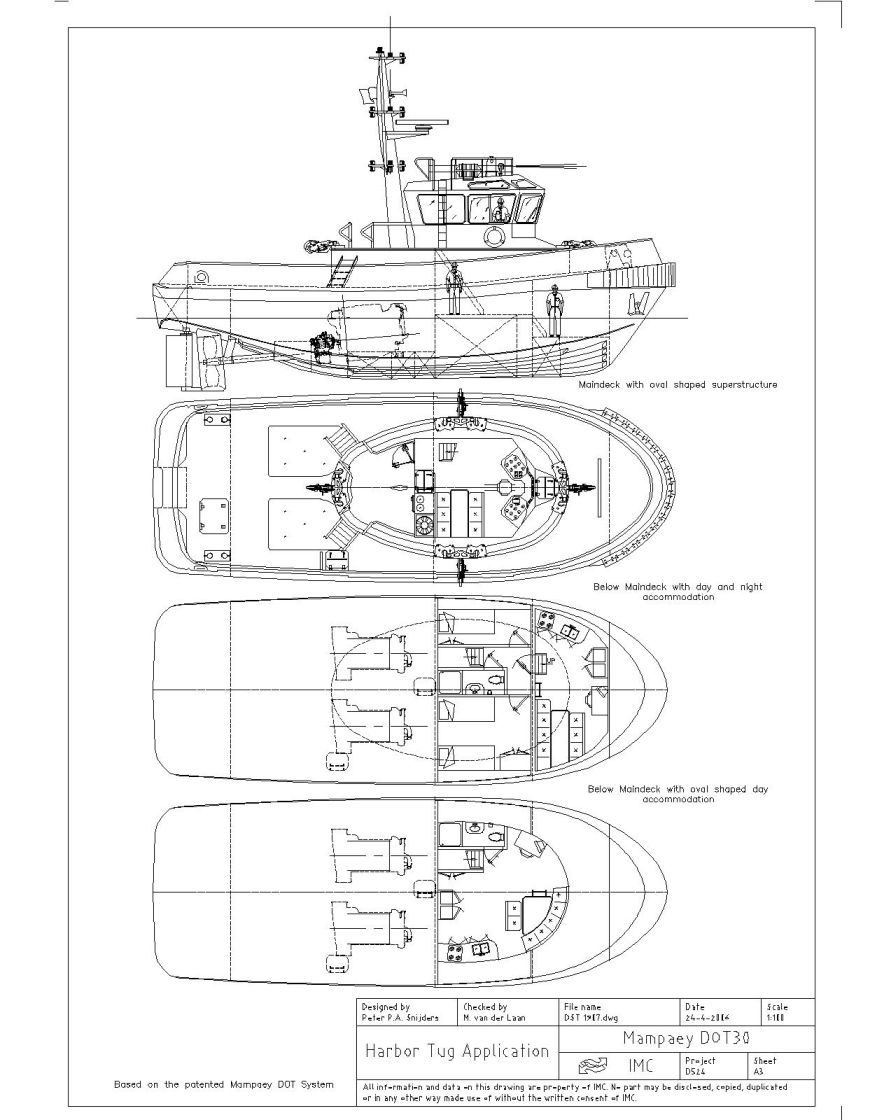

Below is a typical General Arrangement shown

for a 30 ton BP harbour tug of approx 20 m length.

The strength is validated with Finite Element Calculations

• For a sideward load of 60 ton (2x SWL of 30 ton)
• Supporting structure modelled as shown
• All stress levels below yield value

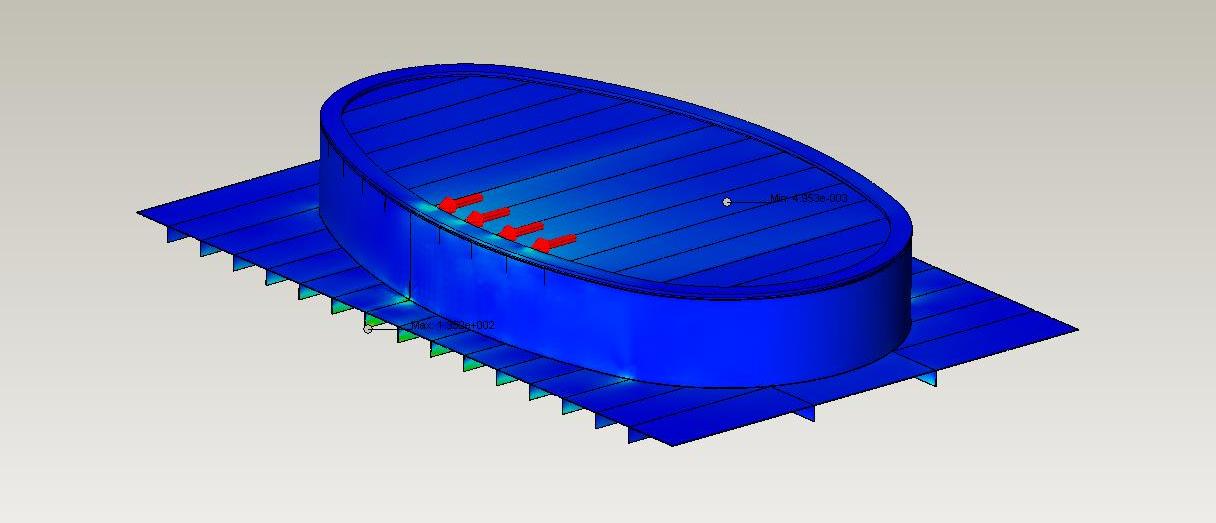

View from SB bow side looking aft down on deck

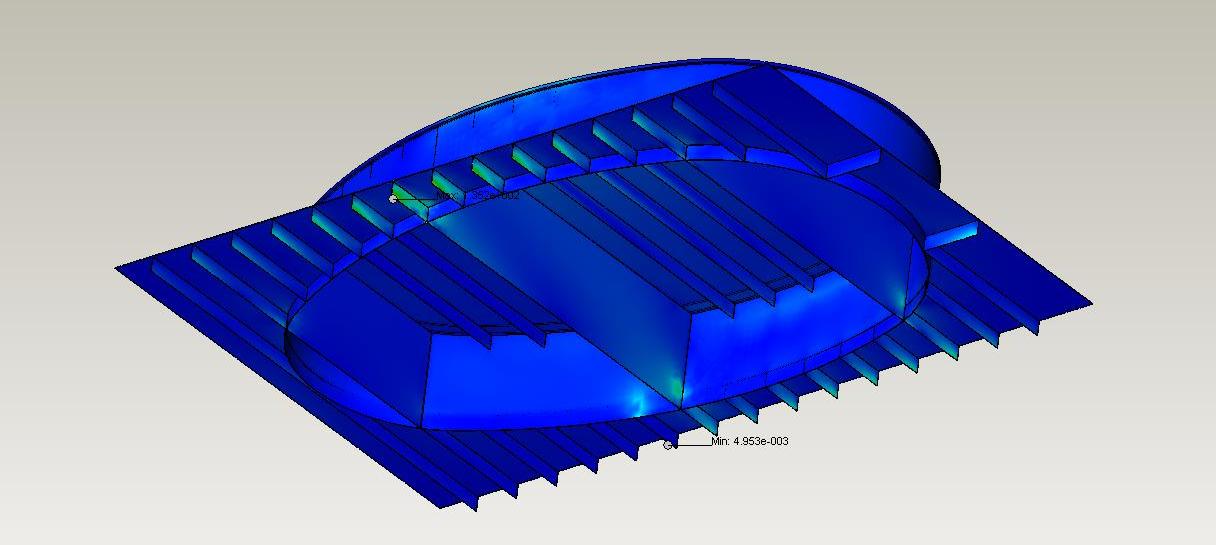

View from SB bow side looking up to bottom side of deck

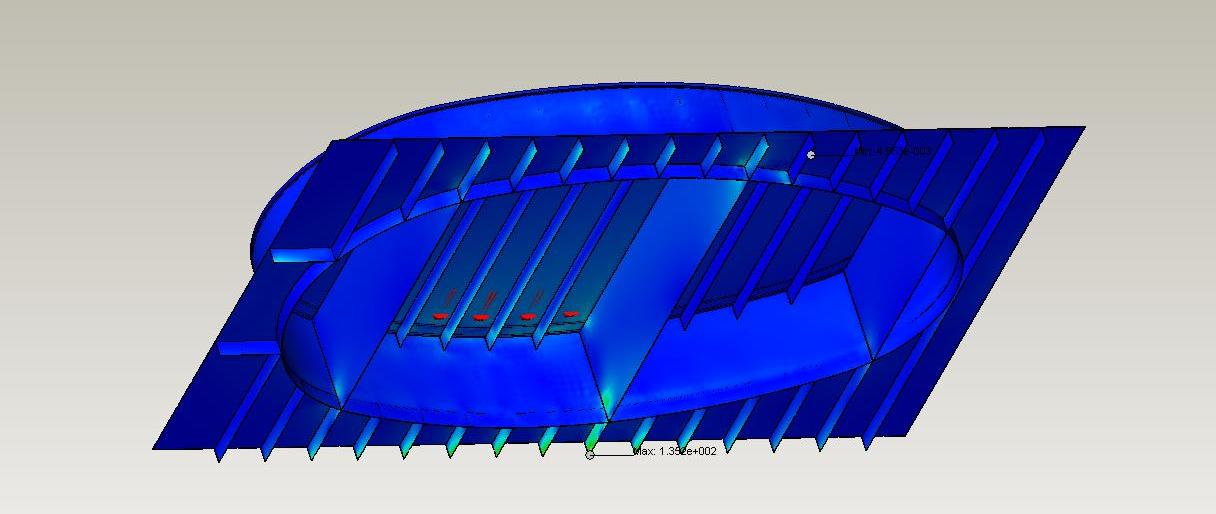

View from SB side looking up to bottom side of deck

Please contact us for strength calculatons on your tug specific design.
